Working with dates and times

module 2 week 6 tidyverse R programming dates and times

Introduction to lubridate for dates and times in R.

Stephanie Hicks https://stephaniehicks.com/ (Department of Biostatistics, Johns Hopkins)https://www.jhsph.edu
10-05-2021

Pre-lecture materials

Read ahead

Before class, you can prepare by reading the following materials:

  1. https://r4ds.had.co.nz/dates-and-times.html

Acknowledgements

Material for this lecture was borrowed and adopted from

Learning objectives

At the end of this lesson you will:

Introduction

In this lesson, we will learn how to work with dates and times in R. These may seem simple as you use them all of the time in your day-to-day life, but the more you work with them, the more complicated they seem to get.

Dates and times are hard because they have to reconcile two physical phenomena (the rotation of the Earth and its orbit around the sun) with a whole raft of geopolitical phenomena including months, time zones, and daylight savings time (DST).

This lesson will not teach you every last detail about dates and times, but it will give you a solid grounding of practical skills that will help you with common data analysis challenges.

R has developed a special representation of dates and times

The lubridate package

Here, we will focus on the lubridate R package, which makes it easier to work with dates and times in R.

check out the cheat sheet at https://lubridate.tidyverse.org

A few things to note about it:

lubridate is installed when you install tidyverse, but it is not loaded when you load tidyverse. Alternatively, you can install it separately.

install.packages("lubridate")

Creating date/times

There are three types of date/time data that refer to an instant in time:

In this lesson, we will focus on dates and date-times as R does not have a native class for storing times. If you need one, you can use the hms package.

You should always use the simplest possible data type that works for your needs. That means if you can use a date instead of a date-time, you should. Date-times are substantially more complicated because of the need to handle time zones, which we’ll come back to at the end of the chapter.

To get the current date or date-time you can use today() or now() from lubridate:

today()
[1] "2021-10-05"
now()
[1] "2021-10-05 15:01:20 EDT"

Otherwise, there are three ways you are likely to create a date/time:

They work as follows.

From a string

Dates are of the Date class.

x <- today()
class(x)
[1] "Date"

Dates can be coerced from a character strings using some helper functions from lubridate. They automatically work out the format once you specify the order of the component.

To use the helper functions, identify the order in which year, month, and day appear in your dates, then arrange “y”, “m”, and “d” in the same order.

That gives you the name of the lubridate function that will parse your date. For example:

ymd("1970-01-01")
[1] "1970-01-01"
ymd("2017-01-31")
[1] "2017-01-31"
mdy("January 31st, 2017")
[1] "2017-01-31"
dmy("31-Jan-2017")
[1] "2017-01-31"

Pro tips:

ymd(20170131)
[1] "2017-01-31"

Alternate Formulations

Different locales have different ways of formatting dates

ymd("2016-09-13")  ## International standard
[1] "2016-09-13"
ymd("2016/09/13")  ## Just figure it out
[1] "2016-09-13"
mdy("09-13-2016")  ## Mostly U.S.
[1] "2016-09-13"
dmy("13-09-2016")  ## Europe
[1] "2016-09-13"

All of the above are valid and lead to the exact same object.

Even if the individual dates are formatted differently, ymd() can usually figure it out.

x <- c("2016-04-05",
       "2016/05/06",
       "2016,10,4")
ymd(x)
[1] "2016-04-05" "2016-05-06" "2016-10-04"

From individual date-time components

Sometimes the date components will come across multiple columns in a dataset.

library(nycflights13)

flights %>%
  select(year, month, day)
# A tibble: 336,776 × 3
    year month   day
   <int> <int> <int>
 1  2013     1     1
 2  2013     1     1
 3  2013     1     1
 4  2013     1     1
 5  2013     1     1
 6  2013     1     1
 7  2013     1     1
 8  2013     1     1
 9  2013     1     1
10  2013     1     1
# … with 336,766 more rows

To create a date/time from this sort of input, use make_date() for dates, or make_datetime() for date-times:

flights %>%
  select(year, month, day) %>%
  mutate(departure = make_date(year, month, day))
# A tibble: 336,776 × 4
    year month   day departure
   <int> <int> <int> <date>
 1  2013     1     1 2013-01-01
 2  2013     1     1 2013-01-01
 3  2013     1     1 2013-01-01
 4  2013     1     1 2013-01-01
 5  2013     1     1 2013-01-01
 6  2013     1     1 2013-01-01
 7  2013     1     1 2013-01-01
 8  2013     1     1 2013-01-01
 9  2013     1     1 2013-01-01
10  2013     1     1 2013-01-01
# … with 336,766 more rows

The flights also contains a hour and minute column. Use make_datetime() to create a date-time column called departure:

# try it yourself

From other types

You may want to switch between a date-time and a date. That is the job of as_datetime() and as_date():

today()
[1] "2021-10-05"
[1] "2021-10-05 UTC"
now()
[1] "2021-10-05 15:01:23 EDT"
[1] "2021-10-05"

Date-Times in R

From a string

ymd() and friends create dates. To create a date-time from a character string, add an underscore and one or more of “h”, “m”, and “s” to the name of the parsing function:

Times can be coerced from a character string with ymd_hms()

ymd_hms("2017-01-31 20:11:59")
[1] "2017-01-31 20:11:59 UTC"
mdy_hm("01/31/2017 08:01")
[1] "2017-01-31 08:01:00 UTC"

You can also force the creation of a date-time from a date by supplying a timezone:

ymd_hms("2016-09-13 14:00:00")
[1] "2016-09-13 14:00:00 UTC"
ymd_hms("2016-09-13 14:00:00", tz = "America/New_York")
[1] "2016-09-13 14:00:00 EDT"
ymd_hms("2016-09-13 14:00:00", tz = "")
[1] "2016-09-13 14:00:00 EDT"

POSIXct or the POSIXlt class

Let’s get into some hairy details about date-times. Date-times are represented using the POSIXct or the POSIXlt class in R. What are these things?

POSIXct

POSIXct is just a very large integer under the hood. It is a useful class when you want to store times in something like a data frame.

Technically, the POSIXct class represents the number of seconds since 1 January 1970. (In case you were wondering, “POSIXct” stands for “Portable Operating System Interface”, calendar time.)

x <- ymd_hm("1970-01-01 01:00")
class(x)
[1] "POSIXct" "POSIXt"
unclass(x)
[1] 3600
attr(,"tzone")
[1] "UTC"
typeof(x)
[1] "double"
$class
[1] "POSIXct" "POSIXt"

$tzone
[1] "UTC"

POSIXlt

POSIXlt is a list underneath and it stores a bunch of other useful information like the day of the week, day of the year, month, day of the month

y <- as.POSIXlt(x)

typeof(y)
[1] "list"
$names
[1] "sec"   "min"   "hour"  "mday"  "mon"   "year"  "wday"  "yday"
[9] "isdst"

$class
[1] "POSIXlt" "POSIXt"

$tzone
[1] "UTC"

Pro tips: POSIXlts are rare inside the tidyverse. They do crop up in base R, because they are needed to extract specific components of a date, like the year or month.

Since lubridate provides helpers for you to do this instead, you do not really need them imho.

POSIXct’s are always easier to work with, so if you find you have a POSIXlt, you should always convert it to a regular data time lubridate::as_datetime().

Time Zones!

Time zones were created to make your data analyses more difficult as a data analyst. Here are a few fun things to think about:

You can go to Wikipedia to find the list of time zones

x <- ymd_hm("1970-01-01 01:00", tz = "")
x
[1] "1970-01-01 01:00:00 EST"
$class
[1] "POSIXct" "POSIXt"

$tzone
[1] ""

Pro tip: The tzone attribute is optional. It controls how the time is printed, not what absolute time it refers to.

attr(x, "tzone") <- "US/Pacific"
x
[1] "1969-12-31 22:00:00 PST"
attr(x, "tzone") <- "US/Eastern"
x
[1] "1970-01-01 01:00:00 EST"

A few other fun things to think about related to time zones:

Operations on Dates and Times

Arithmetic

You can add and subtract dates and times. You can do comparisons too (i.e. ==, <=)

x <- ymd("2012-01-01", tz = "")  ## Midnight
y <- dmy_hms("9 Jan 2011 11:34:21", tz = "")
x - y ## this works
Time difference of 356.5178 days
x < y ## this works
[1] FALSE
x > y ## this works
[1] TRUE
x == y ## this works
[1] FALSE
x + y ## what??? why does this not work?
Error in `+.POSIXt`(x, y): binary '+' is not defined for "POSIXt" objects

Remember: POSIXct objects are a measure of seconds from an origin, usually the UNIX epoch (1st Jan 1970).

Just add the requisite number of seconds to the object:

x + 3*60*60 # add 3 hours
[1] "2012-01-01 03:00:00 EST"
x
[1] "2012-01-01 EST"

Same goes for days. For example, you can just keep the date portion using date():

y <- date(y)
y
[1] "2011-01-09"

And then add a number to the date (in this case 1 day)

y + 1
[1] "2011-01-10"

Cool eh?

Leaps and Bounds

Even keeps track of leap years, leap seconds, daylight savings, and time zones.

Leap years

x <- ymd("2012-03-01")
y <- ymd("2012-02-28")
x - y
Time difference of 2 days

Not a leap year

x <- ymd("2013-03-01")
y <- ymd("2013-02-28")
x - y
Time difference of 1 days

BUT beware of time zones!

x <- ymd_hms("2012-10-25 01:00:00", tz = "")
y <- ymd_hms("2012-10-25 05:00:00", tz = "GMT")
y - x
Time difference of 0 secs

There are also things called leap seconds.

.leap.seconds
 [1] "1972-07-01 GMT" "1973-01-01 GMT" "1974-01-01 GMT"
 [4] "1975-01-01 GMT" "1976-01-01 GMT" "1977-01-01 GMT"
 [7] "1978-01-01 GMT" "1979-01-01 GMT" "1980-01-01 GMT"
[10] "1981-07-01 GMT" "1982-07-01 GMT" "1983-07-01 GMT"
[13] "1985-07-01 GMT" "1988-01-01 GMT" "1990-01-01 GMT"
[16] "1991-01-01 GMT" "1992-07-01 GMT" "1993-07-01 GMT"
[19] "1994-07-01 GMT" "1996-01-01 GMT" "1997-07-01 GMT"
[22] "1999-01-01 GMT" "2006-01-01 GMT" "2009-01-01 GMT"
[25] "2012-07-01 GMT" "2015-07-01 GMT" "2017-01-01 GMT"

Extracting Elements of Dates/Times

There are a set of helper functions in lubridate that can extract sub-elements of dates/times

Date Elements

x <- ymd_hms(c("2012-10-25 01:13:46",
               "2015-04-23 15:11:23"), tz = "")
year(x)
[1] 2012 2015
month(x)
[1] 10  4
day(x)
[1] 25 23
[1] "Thursday" "Thursday"

Time Elements

x <- ymd_hms(c("2012-10-25 01:13:46",
               "2015-04-23 15:11:23"), tz = "")
minute(x)
[1] 13 11
second(x)
[1] 46 23
hour(x)
[1]  1 15
week(x)
[1] 43 17

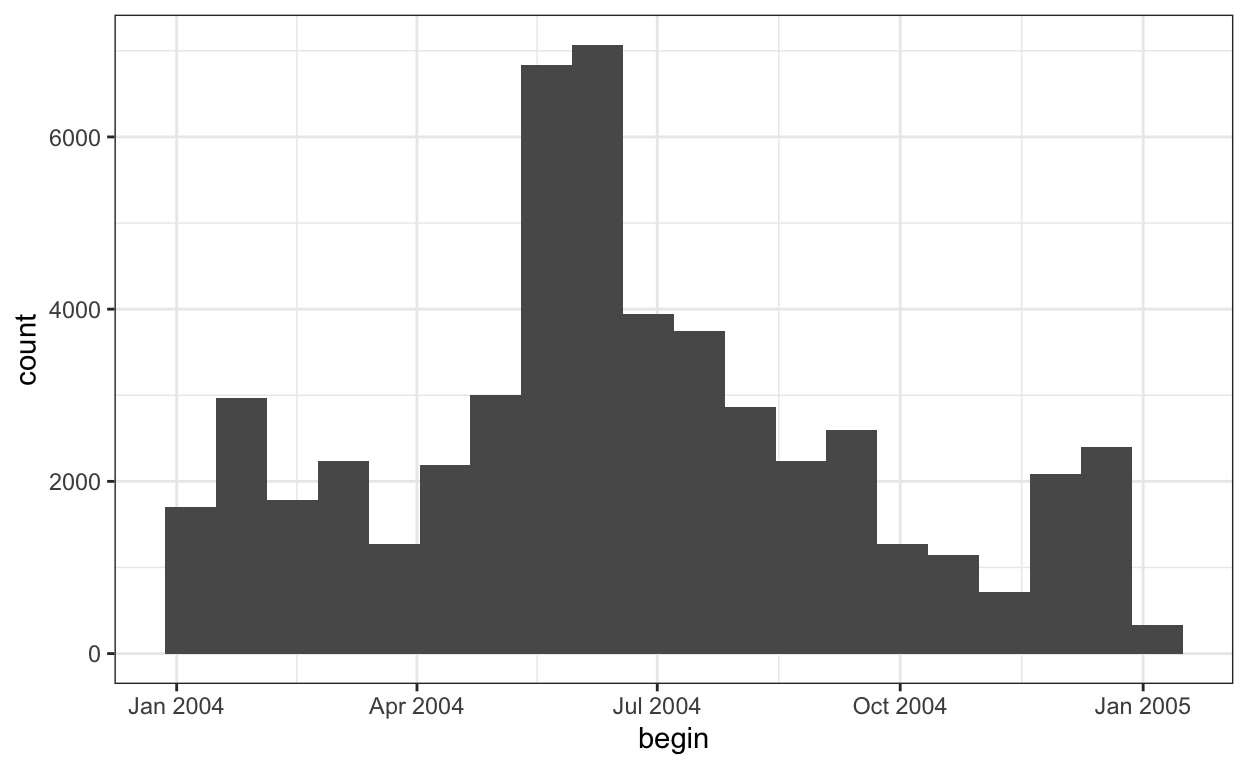

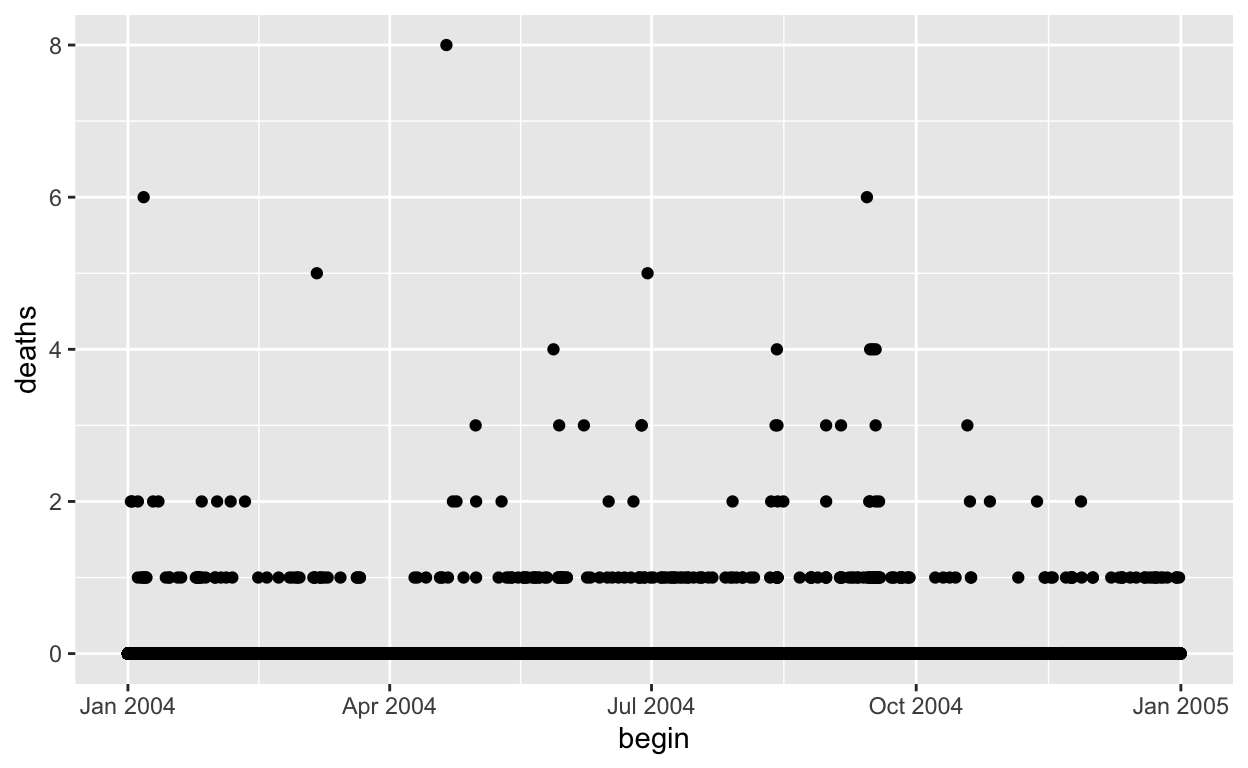

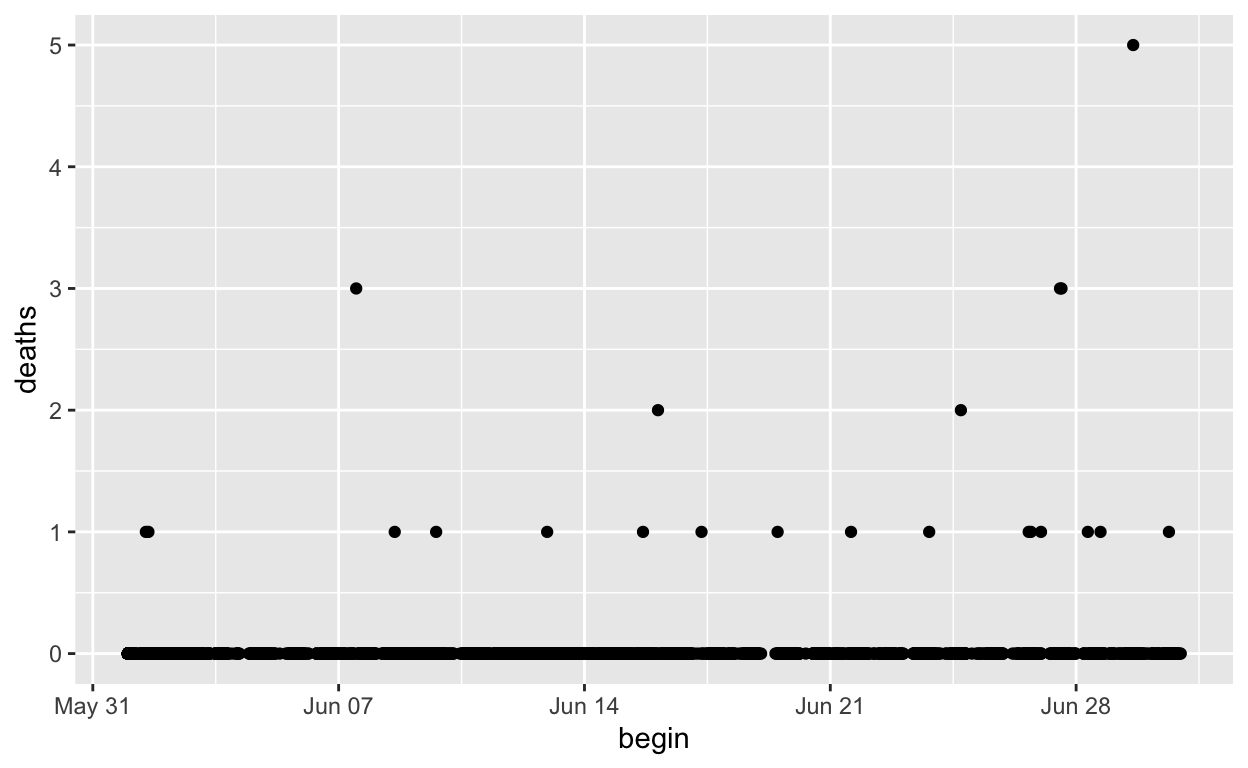

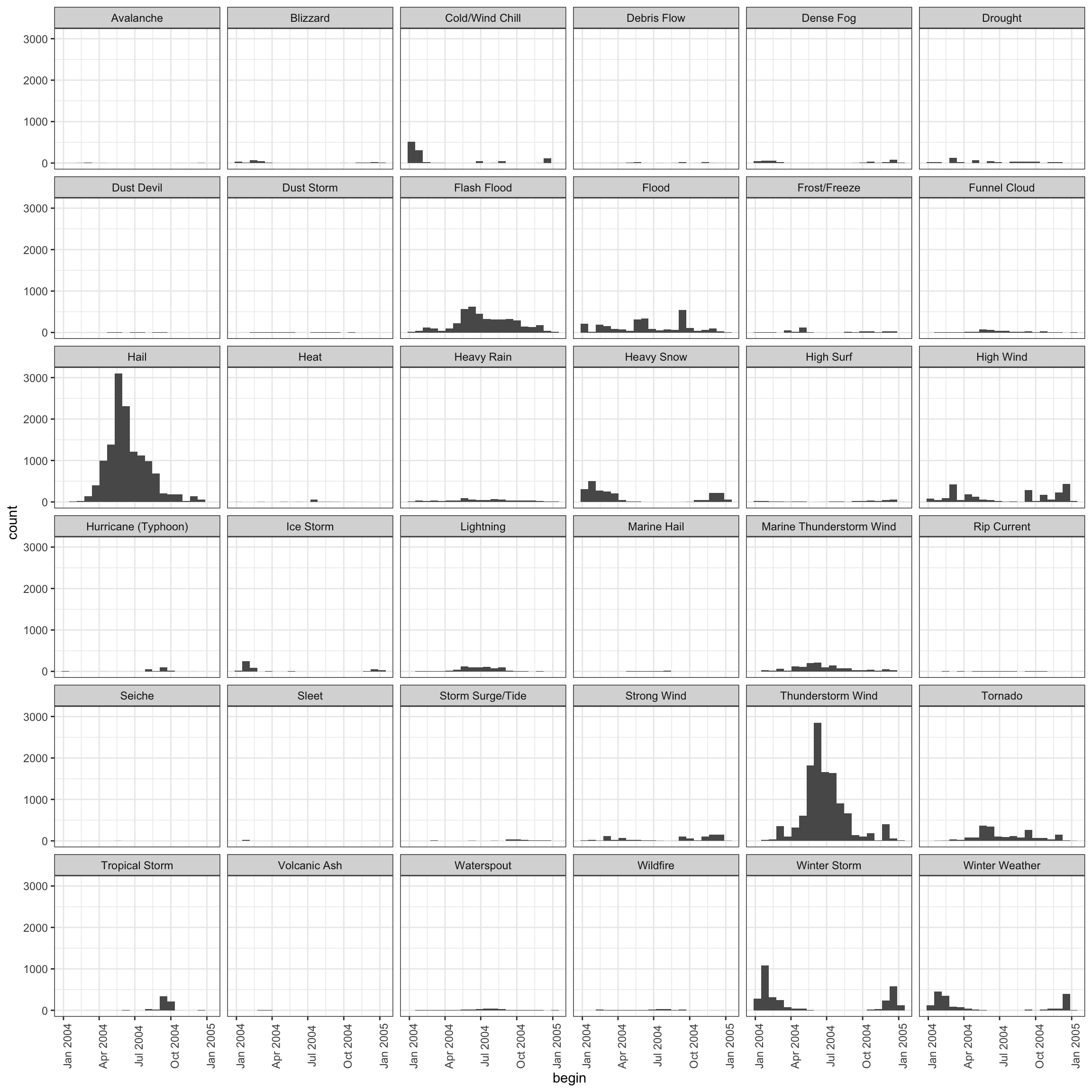

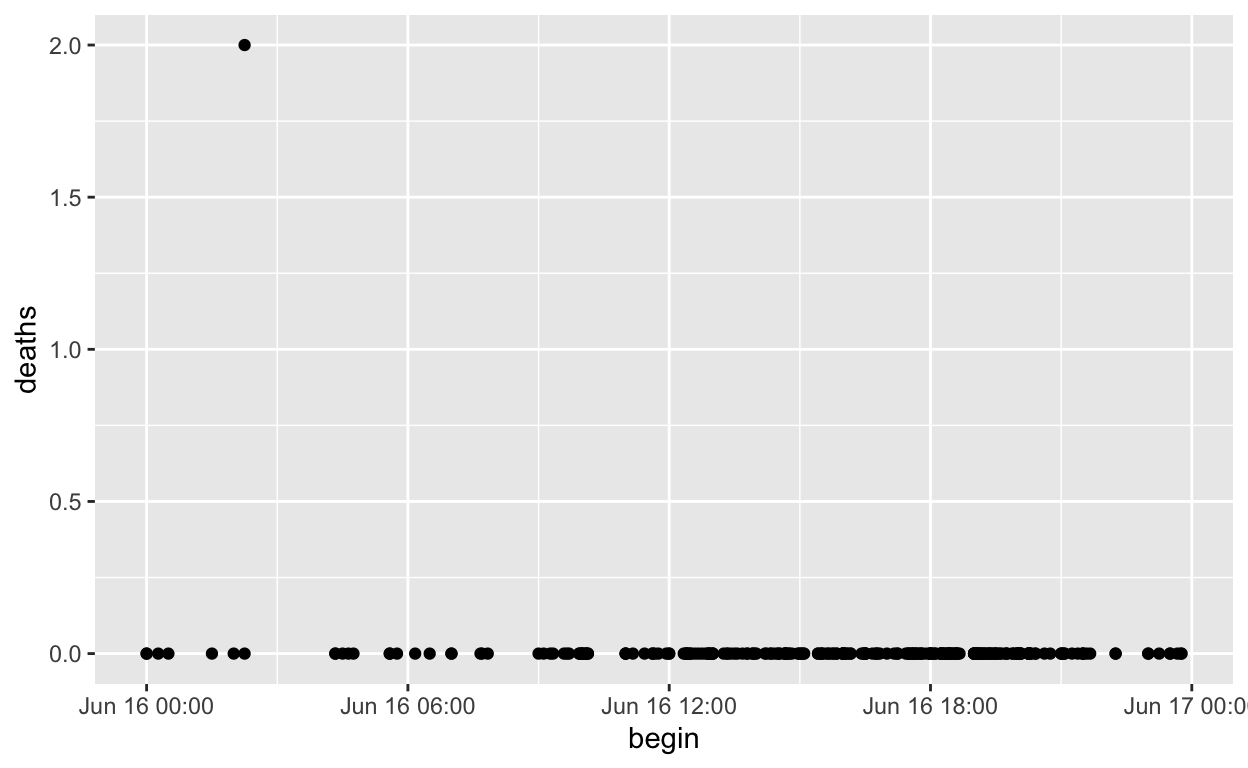

Visualizing Dates

Reading in the Data

library(here)
library(readr)
storm <- read_csv(here("data", "storms_2004.csv.gz"), progress = FALSE)
storm
# A tibble: 52,409 × 51
   BEGIN_YEARMONTH BEGIN_DAY BEGIN_TIME END_YEARMONTH END_DAY END_TIME
             <dbl>     <dbl>      <dbl>         <dbl>   <dbl>    <dbl>
 1          200412        29       1800        200412      30     1200
 2          200412        29       1800        200412      30     1200
 3          200412         8       1800        200412       8     1800
 4          200412        19       1500        200412      19     1700
 5          200412        14        600        200412      14      800
 6          200412        21        400        200412      21      800
 7          200412        21        400        200412      21      800
 8          200412        26       1500        200412      27      800
 9          200412        26       1500        200412      27      800
10          200412        11        800        200412      11     1300
# … with 52,399 more rows, and 45 more variables: EPISODE_ID <dbl>,
#   EVENT_ID <dbl>, STATE <chr>, STATE_FIPS <dbl>, YEAR <dbl>,
#   MONTH_NAME <chr>, EVENT_TYPE <chr>, CZ_TYPE <chr>, CZ_FIPS <dbl>,
#   CZ_NAME <chr>, WFO <chr>, BEGIN_DATE_TIME <chr>,
#   CZ_TIMEZONE <chr>, END_DATE_TIME <chr>, INJURIES_DIRECT <dbl>,
#   INJURIES_INDIRECT <dbl>, DEATHS_DIRECT <dbl>,
#   DEATHS_INDIRECT <dbl>, DAMAGE_PROPERTY <chr>, …
names(storm)
 [1] "BEGIN_YEARMONTH"    "BEGIN_DAY"          "BEGIN_TIME"
 [4] "END_YEARMONTH"      "END_DAY"            "END_TIME"
 [7] "EPISODE_ID"         "EVENT_ID"           "STATE"
[10] "STATE_FIPS"         "YEAR"               "MONTH_NAME"
[13] "EVENT_TYPE"         "CZ_TYPE"            "CZ_FIPS"
[16] "CZ_NAME"            "WFO"                "BEGIN_DATE_TIME"
[19] "CZ_TIMEZONE"        "END_DATE_TIME"      "INJURIES_DIRECT"
[22] "INJURIES_INDIRECT"  "DEATHS_DIRECT"      "DEATHS_INDIRECT"
[25] "DAMAGE_PROPERTY"    "DAMAGE_CROPS"       "SOURCE"
[28] "MAGNITUDE"          "MAGNITUDE_TYPE"     "FLOOD_CAUSE"
[31] "CATEGORY"           "TOR_F_SCALE"        "TOR_LENGTH"
[34] "TOR_WIDTH"          "TOR_OTHER_WFO"      "TOR_OTHER_CZ_STATE"
[37] "TOR_OTHER_CZ_FIPS"  "TOR_OTHER_CZ_NAME"  "BEGIN_RANGE"
[40] "BEGIN_AZIMUTH"      "BEGIN_LOCATION"     "END_RANGE"
[43] "END_AZIMUTH"        "END_LOCATION"       "BEGIN_LAT"
[46] "BEGIN_LON"          "END_LAT"            "END_LON"
[49] "EPISODE_NARRATIVE"  "EVENT_NARRATIVE"    "DATA_SOURCE"

Let’s take a look at the BEGIN_DATE_TIME, EVENT_TYPE, and DEATHS_DIRECT variables. Try to convert the BEGIN_DATE_TIME date/time column to a date/time R object.

library(dplyr)
storm %>%
  select(BEGIN_DATE_TIME, EVENT_TYPE, DEATHS_DIRECT) %>%
  mutate(date = dmy_hms(BEGIN_DATE_TIME))
# A tibble: 52,409 × 4
   BEGIN_DATE_TIME    EVENT_TYPE       DEATHS_DIRECT date
   <chr>              <chr>                    <dbl> <dttm>
 1 29-DEC-04 18:00:00 Heavy Snow                   0 2004-12-29 18:00:00
 2 29-DEC-04 18:00:00 Heavy Snow                   0 2004-12-29 18:00:00
 3 08-DEC-04 18:00:00 Winter Storm                 0 2004-12-08 18:00:00
 4 19-DEC-04 15:00:00 High Wind                    0 2004-12-19 15:00:00
 5 14-DEC-04 06:00:00 Winter Weather               0 2004-12-14 06:00:00
 6 21-DEC-04 04:00:00 Winter Storm                 0 2004-12-21 04:00:00
 7 21-DEC-04 04:00:00 Winter Storm                 0 2004-12-21 04:00:00
 8 26-DEC-04 15:00:00 Winter Storm                 0 2004-12-26 15:00:00
 9 26-DEC-04 15:00:00 Winter Storm                 0 2004-12-26 15:00:00
10 11-DEC-04 08:00:00 Storm Surge/Tide             0 2004-12-11 08:00:00
# … with 52,399 more rows
# try it yourself

Next, we do some wrangling to create a storm_sub data frame (code chunk set to echo=FALSE for the purposes of the lecture, but code is in the R Markdown).

storm_sub
# A tibble: 52,409 × 3
   begin               type             deaths
   <dttm>              <chr>             <dbl>
 1 2004-12-29 18:00:00 Heavy Snow            0
 2 2004-12-29 18:00:00 Heavy Snow            0
 3 2004-12-08 18:00:00 Winter Storm          0
 4 2004-12-19 15:00:00 High Wind             0
 5 2004-12-14 06:00:00 Winter Weather        0
 6 2004-12-21 04:00:00 Winter Storm          0
 7 2004-12-21 04:00:00 Winter Storm          0
 8 2004-12-26 15:00:00 Winter Storm          0
 9 2004-12-26 15:00:00 Winter Storm          0
10 2004-12-11 08:00:00 Storm Surge/Tide      0
# … with 52,399 more rows

Histograms of Dates/Times

We can make a histogram of the dates/times to get a sense of when storm events occur.

library(ggplot2)
storm_sub %>%
  ggplot(aes(x = begin)) +
  geom_histogram(bins = 20) +
  theme_bw()

We can group by event type too.

library(ggplot2)
storm_sub %>%
  ggplot(aes(x = begin)) +
  facet_wrap(~ type) +
  geom_histogram(bins = 20) +
  theme_bw() +
  theme(axis.text.x.bottom = element_text(angle = 90))

Scatterplots of Dates/Times

storm_sub %>%
  ggplot(aes(x = begin, y = deaths)) +
  geom_point()

If we focus on a single month, the x-axis adapts.

storm_sub %>%
  filter(month(begin) == 6) %>%
  ggplot(aes(begin, deaths)) +
  geom_point()

Similarly, we can focus on a single day.

storm_sub %>%
  filter(month(begin) == 6, day(begin) == 16) %>%
  ggplot(aes(begin, deaths)) +
  geom_point()

Summary

Post-lecture materials

Final Questions

Here are some post-lecture questions to help you think about the material discussed.

Questions:

  1. What happens if you parse a string that contains invalid dates?
ymd(c("2010-10-10", "bananas"))
  1. What does the tzone argument to today() do? Why is it important?
[1] 18905
  1. Use the appropriate lubridate function to parse each of the following dates:
d1 <- "January 1, 2010"
d2 <- "2015-Mar-07"
d3 <- "06-Jun-2017"
d4 <- c("August 19 (2015)", "July 1 (2015)")
d5 <- "12/30/14" # Dec 30, 20
  1. Using the flights dataset, how does the distribution of flight times within a day change over the course of the year?

  2. Compare dep_time, sched_dep_time and dep_delay. Are they consistent? Explain your findings.

Additional Resources

Reuse

Text and figures are licensed under Creative Commons Attribution CC BY-NC-SA 4.0. The figures that have been reused from other sources don't fall under this license and can be recognized by a note in their caption: "Figure from ...".

Citation

For attribution, please cite this work as

Hicks (2021, Oct. 5). Statistical Computing: Working with dates and times. Retrieved from https://stephaniehicks.com/jhustatcomputing2021/posts/2021-10-05-working-with-dates-and-times/

BibTeX citation

@misc{hicks2021working,
  author = {Hicks, Stephanie},
  title = {Statistical Computing: Working with dates and times},
  url = {https://stephaniehicks.com/jhustatcomputing2021/posts/2021-10-05-working-with-dates-and-times/},
  year = {2021}
}
